Fanimation

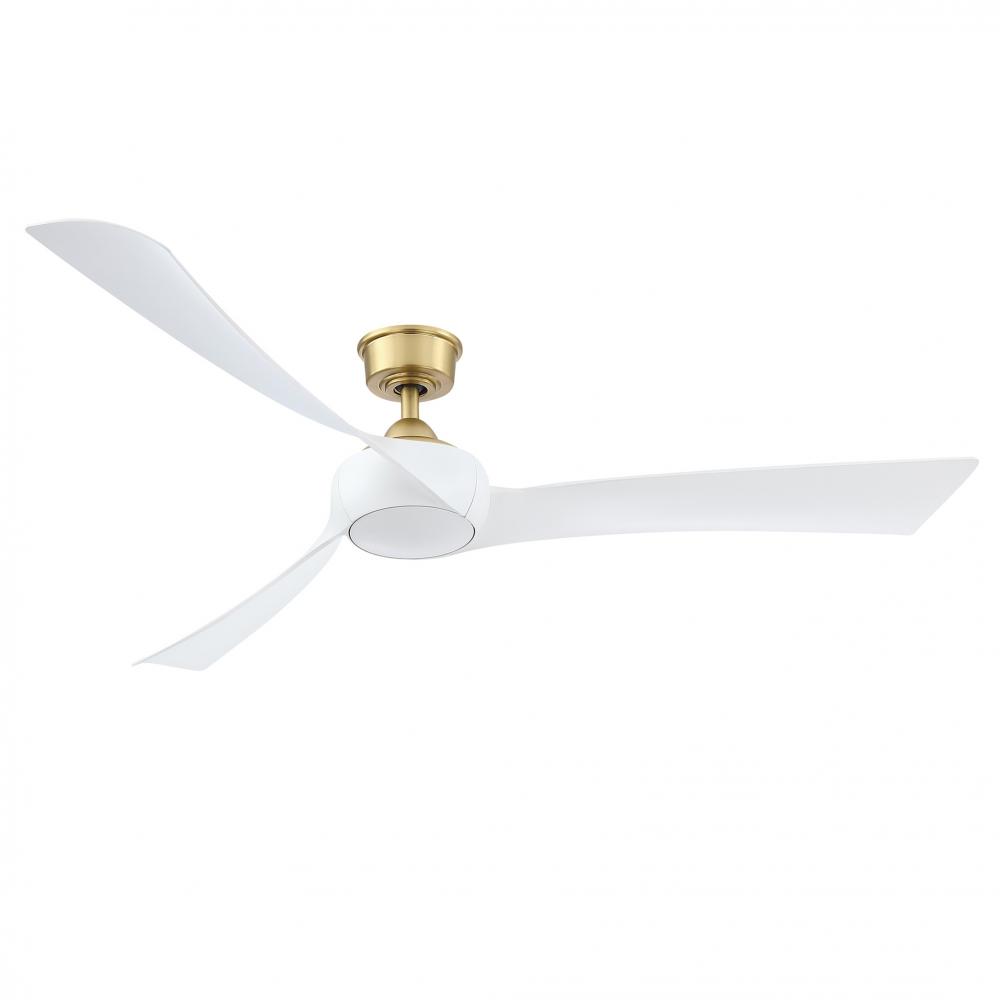

Wrap Custom Indoor/Outdoor Ceiling Fan DC Motor- Brushed Satin Brass (MAD8531BS)
$529.98
Call For Price
Enlarge Image
Add to Cart
Description:
Wrap yourself in style with this sophisticated ceiling fan from Fanimation. with many motor and blade finish combinations available, Wrap Custom is a versatile ceiling fan. LED and CCT Select Light kit, blades and motor sold separately. This ceiling fan is Damp Rated for indoor or outdoor use. It can also be controlled by using the Fanimation Wi-Fi fanSync application.
Availability:
  • Manufacturer availability unavailable.
  • Item may be on Backorder until 09/09/2025 or later.
Required Components:

Optional Accessory:

Dimensions:
right arrow Height: 15.96"
right arrow Width: 64.00"
Additional Details:
right arrow Category: Motor
right arrow Finish: Brushed Satin Brass
right arrow Option: Energy Efficient , Outdoor
right arrow Family: Wrap Custom
right arrow Voltage: 120 V
right arrow Air Flow CFM: 11206
right arrow Air Flow Efficiency: 366
right arrow Blade Pitch: Varied
right arrow Canopy: 6.14 Dia x 2.55 H
right arrow Harmonized Codes: 8414.51.3000
right arrow Light Kit Included: No
right arrow Motor Size: 153 x 25
right arrow Motor Type: DC
right arrow Ship Carton Height: 7.6
right arrow Ship Carton Length: 16.34
right arrow Ship Carton Width: 8.86
right arrow Ship Weight: 16.1
right arrow Sold By: EA
right arrow Warranty: Limited Lifetime
right arrow Weight: 13.3
right arrow Airflow Efficiency Low: 1172
right arrow Airflow Efficiency Medium: 827
right arrow Avg Airflow Efficiency: 420
right arrow Avg CFM Energy: 8762
right arrow Avg Energy Use: 21
right arrow Avg Estimated Yearly Energy Cost: 6
right arrow Avg Estimated Yearly Energy Cost on HIGH: 9
right arrow Cap Included: Yes
right arrow Carton Cubic Feet: 0.64
right arrow Case Height: 7.6
right arrow Case Length: 16.34
right arrow Case Quantity: 1
right arrow Case Weight Pounds: 16.1
right arrow Case Width: 8.86
right arrow CEC Uploaded: Yes
right arrow Ceiling To Blade Edge: 15.33
right arrow Ceiling To Bottom (No Light Kit): 15.96
right arrow Ceiling To Bottom (With Light Kit): 16.55
right arrow CFM Low: 3516
right arrow CFM Medium: 7859
right arrow Country of Origin: China
right arrow Current Draw High: 0.43
right arrow Current Draw Low: 0.05
right arrow Current Draw Medium: 0.15
right arrow DOE Classification: LSSD
right arrow DOE-FTC Uploaded: Yes
right arrow Downrod Length: 8
right arrow Energy Efficient: Yes
right arrow Exempt from DOE Procedure: No
right arrow Fan Energy Star 4: Yes
right arrow Housing Diameter: 8.88
right arrow Included Control: TR305
right arrow Included Control Type: Handheld
right arrow Indoor: Yes
right arrow Leadwire: 80
right arrow Location Rating: Damp Rated
right arrow Max Ceiling Slope: 27
right arrow Max Length: 84
right arrow Max Width: 84
right arrow Motor Finish Method Type: Painted
right arrow Motor Reversible: Yes
right arrow Number of Blades: 3
right arrow Number Of Speeds: 16
right arrow Outdoor: Yes
right arrow Prop 65 Description: This product can expose you to chemicals including Lead which are known to the State of California to cause cancer and birth defects or other reproductive harm. for more information go to www.P65Warnings.ca.gov
right arrow Regulated Product: Yes
right arrow Reverse Switch Location: Control
right arrow RPM High: 81
right arrow RPM Low: 29
right arrow RPM Medium: 56
right arrow Safety Rating: UL Approved, cUL Approved
right arrow Voltage Cycles: 60 Hz
right arrow Watts High: 31
right arrow Watts Low: 3
right arrow Watts Medium: 10
right arrow Standard Category: Fans
right arrow Standard Subcategory: Ceiling Fans with Light
right arrow Standard Finish: Brass
right arrow Standard Option: Energy Efficient , Outdoor , Damp Rated
right arrow Standard Voltage: 100-120
right arrow Standard Number of Blades: 3 Blades
right arrow Standard Location Rating: Damp Rated
Vendor Item #:
MAD8531BS
